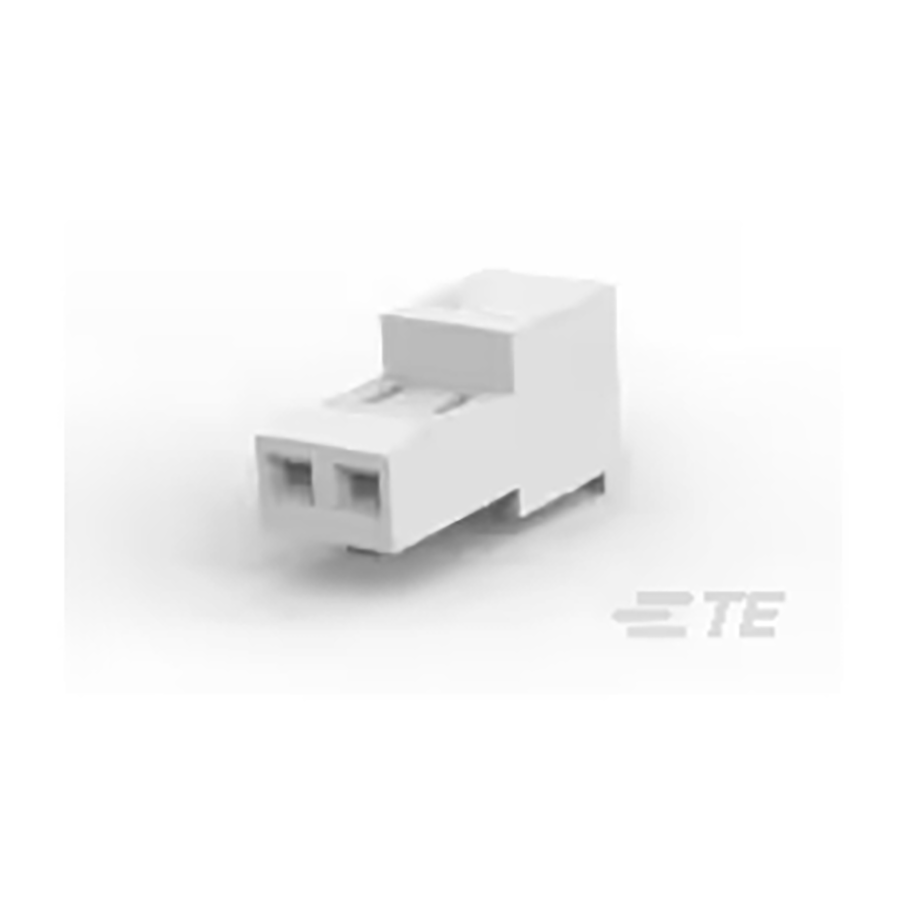

3-640441-2
Manufacturer:
TE Connectivity
Mfr.Part #:
3-640441-2
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Connector, Receptacle, Socket Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 5.08 mm |
| Width | 6.985 mm |
| Termination | IDC, IDT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 2 |
| Height | 6.99 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 6.99 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | CuSn |
| Pitch | 2.54 mm |
| Current Rating | 5 A |
| Flammability Rating | UL94V-2 |
| Approvals | CSA |
| Orientation | Right Angle |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | White |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 2 |
| Connector Type | Connector, Receptacle, Socket |
| Wire/Cable Gauge | 24 AWG |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Wire/Cable Type | Discrete |
| Fastening Type | Ramp |
| Circuit Application | Signal |
| Connector System | Wire-to-Board |
| Contact Resistance | 6 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 5 A |
| Housing Color | White |
| Insulation Diameter | 1.52 mm |
| shrouded | No |
| Plating Thickness | 5.08 µm |
| Contact Gender | Female |
| Underplate Material | Nickel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | With |
| Mating Retention | With |
| Mating Alignment | Without |
Stock: 138433
Distributors
pcbx
pcbxUnit Price$0.10601
Ext.Price$0.10601
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10601 | $0.10601 |
| 10 | $0.09233 | $0.92330 |
| 50 | $0.08531 | $4.26550 |
| 100 | $0.07883 | $7.88300 |
| 500 | $0.06844 | $34.22000 |
| 1000 | $0.05942 | $59.42000 |
| 3000 | $0.05516 | $165.48000 |
| 5000 | $0.05120 | $256.00000 |
| 10000 | $0.04753 | $475.30000 |
